Eutelsat Hot Bird 13G

[The Founder]

it now 12.2E now

[The Founder]

13g 12E⁰

[The Founder]

Eutelsat Hot Bird 13G is stationed in a temporary orbital position of 12° East, where the first technical tests are being performed before it enters commercial operation.

The mission of this spacecraft is to operate in the orbital position of 13º East.

Tests in this position do not involve any risk of interference. Specifically, they are being carried out at frequencies of 10.775-H MHz, 12.073-V MHz, 12.671-V MHz and 12.731-H MHz.

[The Founder]

Five months after launching, the first test signals have been received a close distance from its final orbital position.

Test transmissions have begun on four frequencies from its current position near 12ºE, in preparation for going into full commercial operation this summer.

It’s one of two satellites currently going through thorough testing before replacing three aging satellites at 13ºE. Hotbird 13G was launched into orbit at the beginning of November.

Last month, sister satellite Hotbird 13F, launched in October, also began in-orbit testing, but at 0.4ºE.

Eutelsat 13F and 13G are needed to replace Eutelsat 13B, C and E, which are rapidly heading towards end of life. The old satellites originally carried analogue television services before Hotbird moved to an all-digital environment in 2010. Together, 13F and G will reinforce and enhance the broadcast and reception of over 1,000 television channels.

According to Parabola.cz, the test frequencies and polarisations are 10775 H, 12073 V, 12671 V and 12731 H. These are frequencies currently unused at 13ºE, ensuring the tests from 12ºE don’t create interference.

Both Eutelsat 13F and G promise to offer improved footprints and better reception on smaller dish sizes in some areas. Meanwhile, the satellites will offer advanced features in terms of uplink signal protection and resilience. This follows instances of jamming traced back to Iran.

TV services from Hotbird

The Hotbird satellites at 13°E are used to broadcast TV services from Poland, Italy, Greece, Switzerland and French-speaking Belgium. However, Hotbird is the also the home of numerous feeds for international channels. This includes a number from the BBC World Service and channels from countries including China, Dubai, Jordan, Spain and Portugal. In addition to providing direct to home (DTH) coverage, Hotbird is also used to supply cable and IPTV headends.

[The Founder]

Eutelsat Hotbird 13G is arrived @13°East and next week (probably from wednesday night) will start to migrate transponders from old Hotbird fleet step by step without hassle-free for end users, the frequencies and transmission parameters will remain unchanged.
The second Eutelsat Hotbird 13F will start end of July

[The Founder]

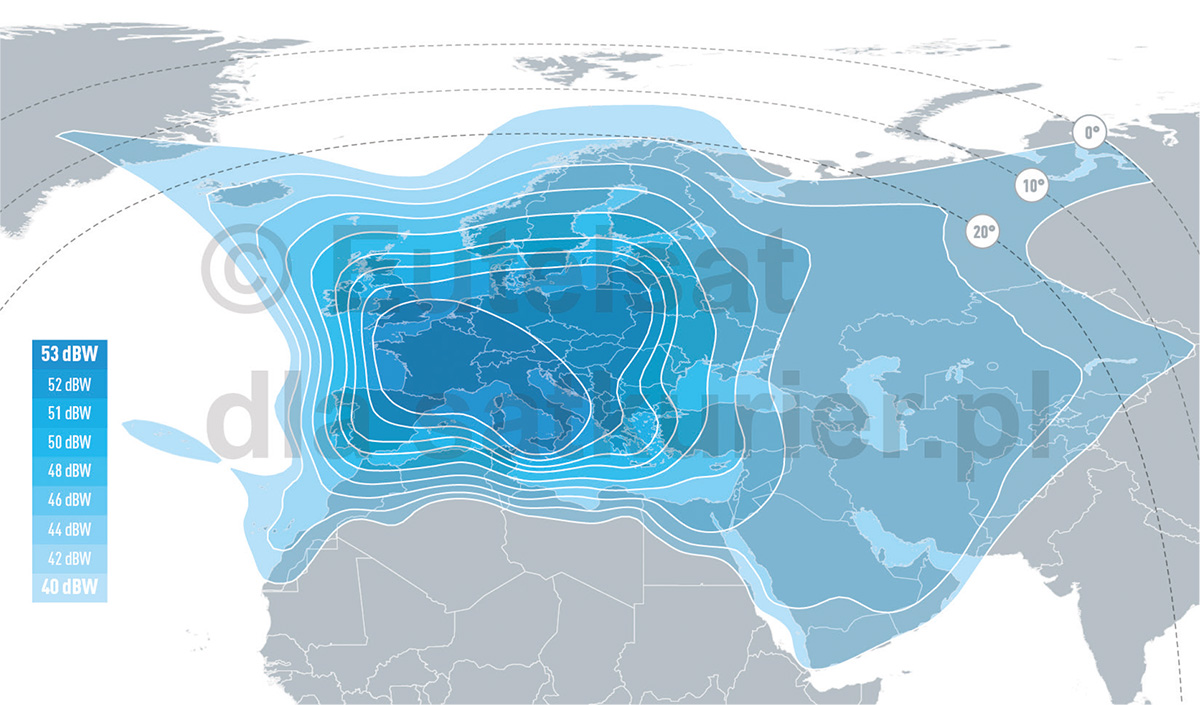

Estimated coverage map for Eutelsat Hot Bird 13G satellites, © Eutelsat


[The Founder]

SR-31428
10834.26 V , 10853.44 H , 12539.02 H , 12654.10 H

But I don't know if these are tests of a new satellite

[The Founder]

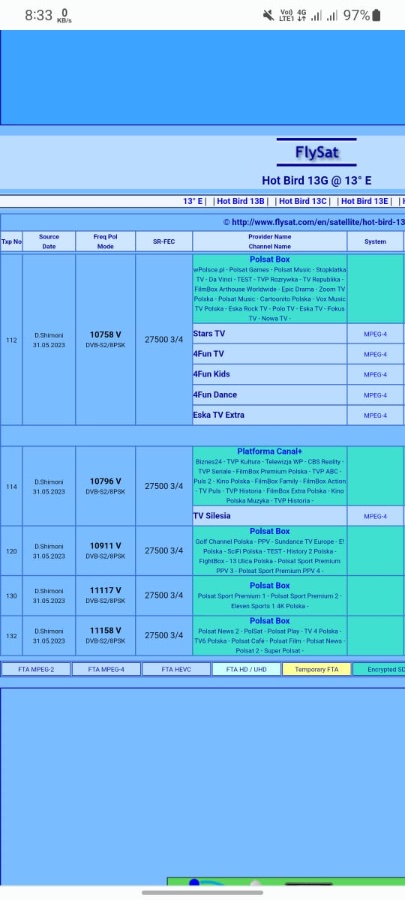

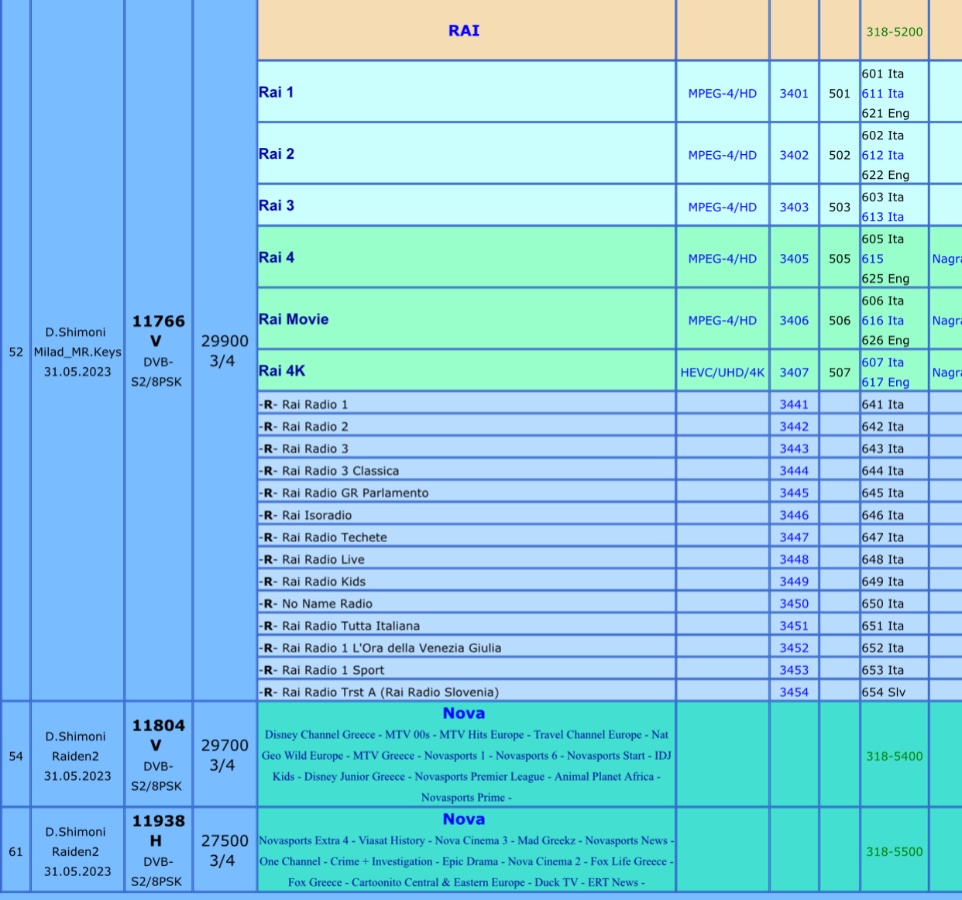

New update hotbird 13G


[The Founder]

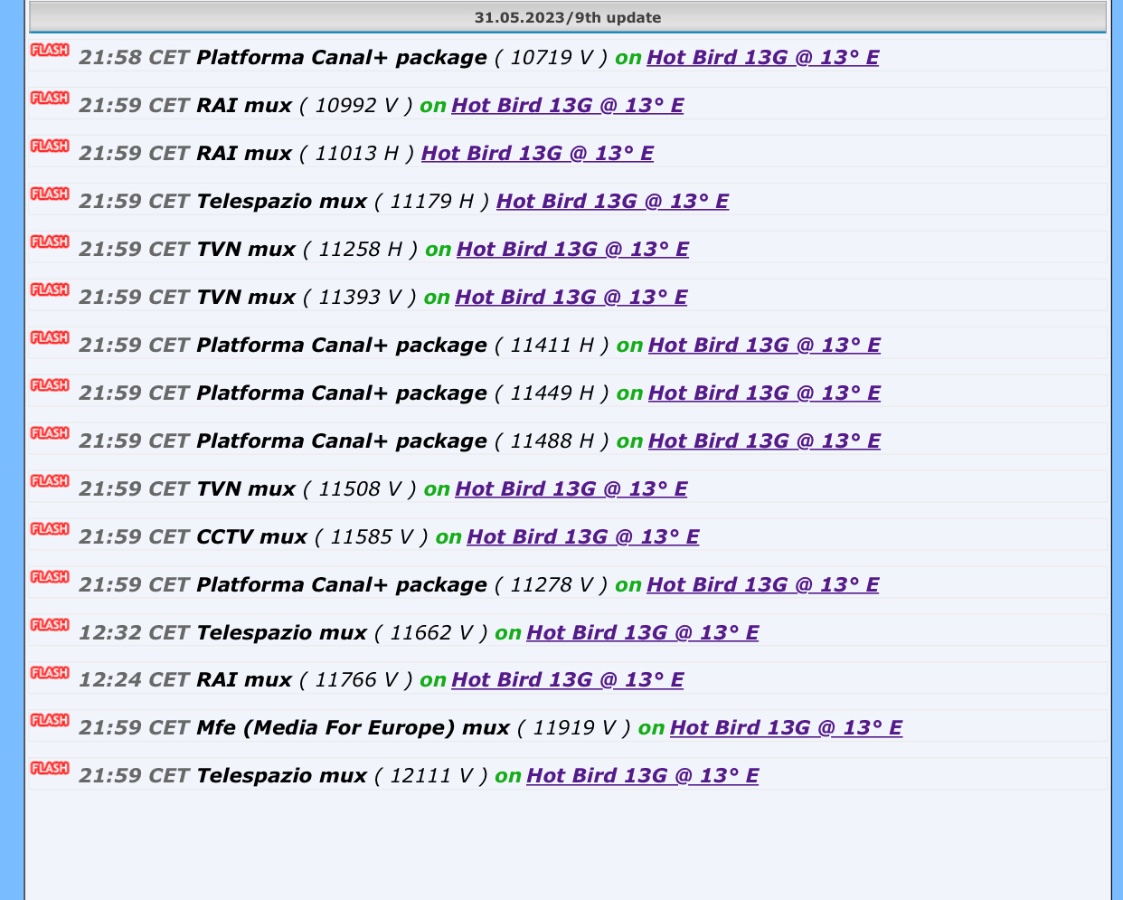

5tp move on 13G

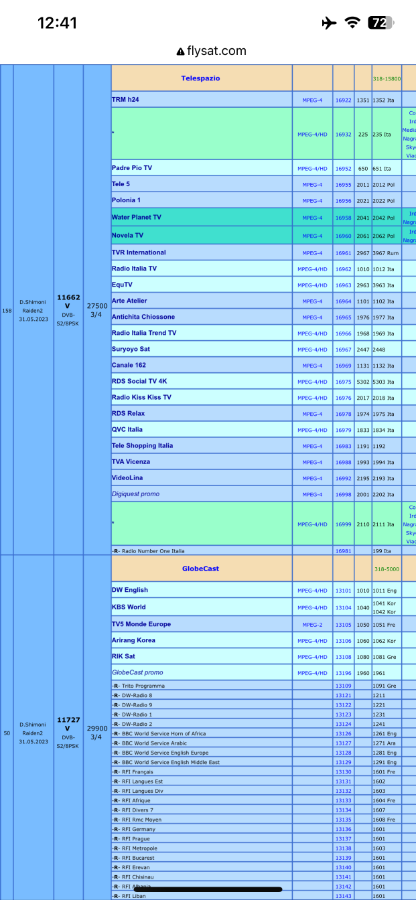

Wait for more good news 13G

[The Founder]
